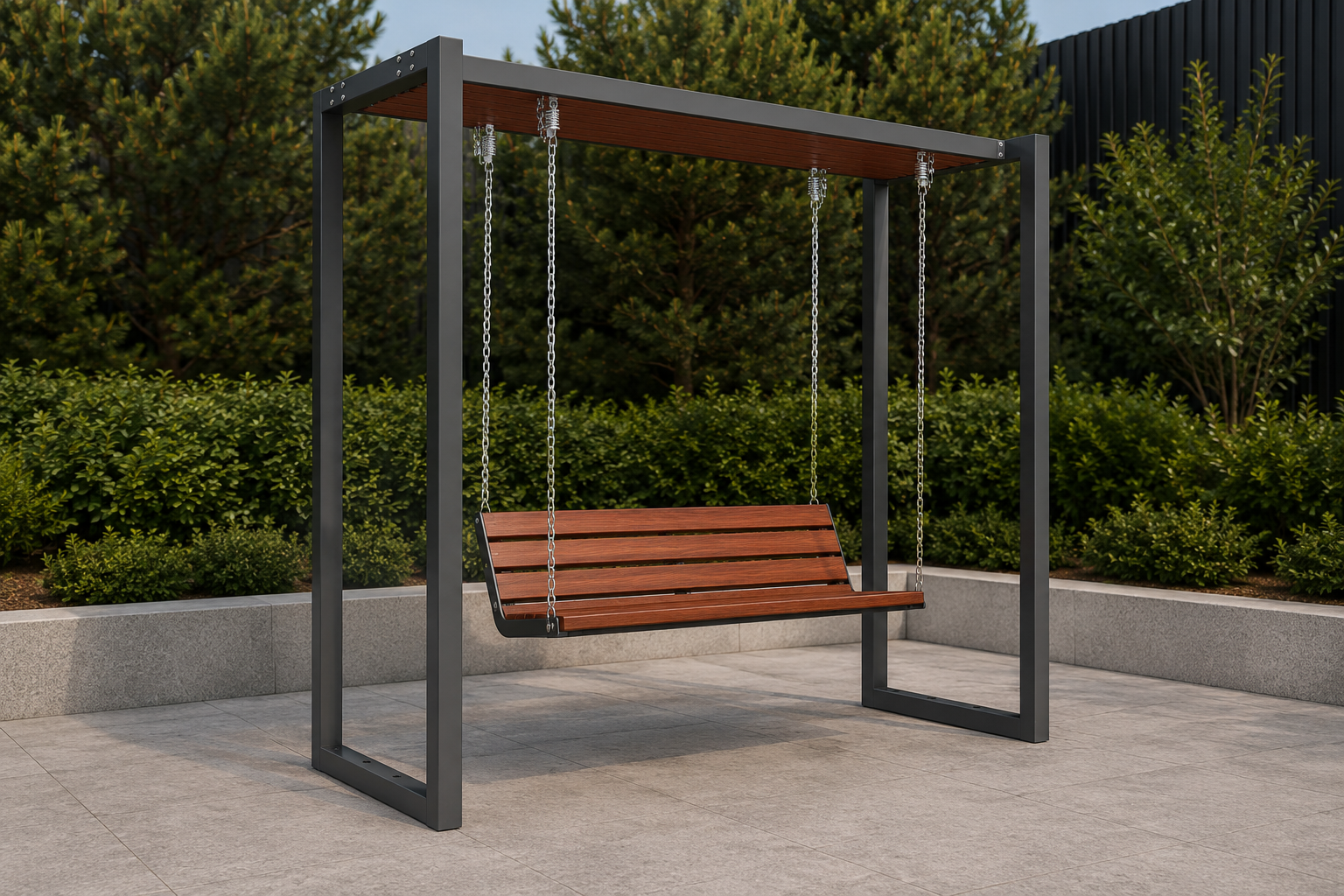

The PS-SU-01 Outdoor Park Swing Bench is a durable public-space furniture solution designed for outdoor use and intensive daily operation. The product combines a fixed steel support frame, a pergola-style upper roof structure, and a suspended bench with backrest.

The load-bearing structure is manufactured from galvanized and powder-coated steel, finished in anthracite grey RAL 7016. The seat and backrest are made from dry wooden boards, while the upper pergola section includes a wooden covering / lamella system. The wood is impregnated against rot fungi, mould, and insects, and finished with two layers of outdoor oil with UV protection and fungicides.

The bench is suspended with chain fixings and metal connection nodes. The structure is intended for fixed installation to a prepared base, with the anchoring solution adapted to the existing surface and project requirements.

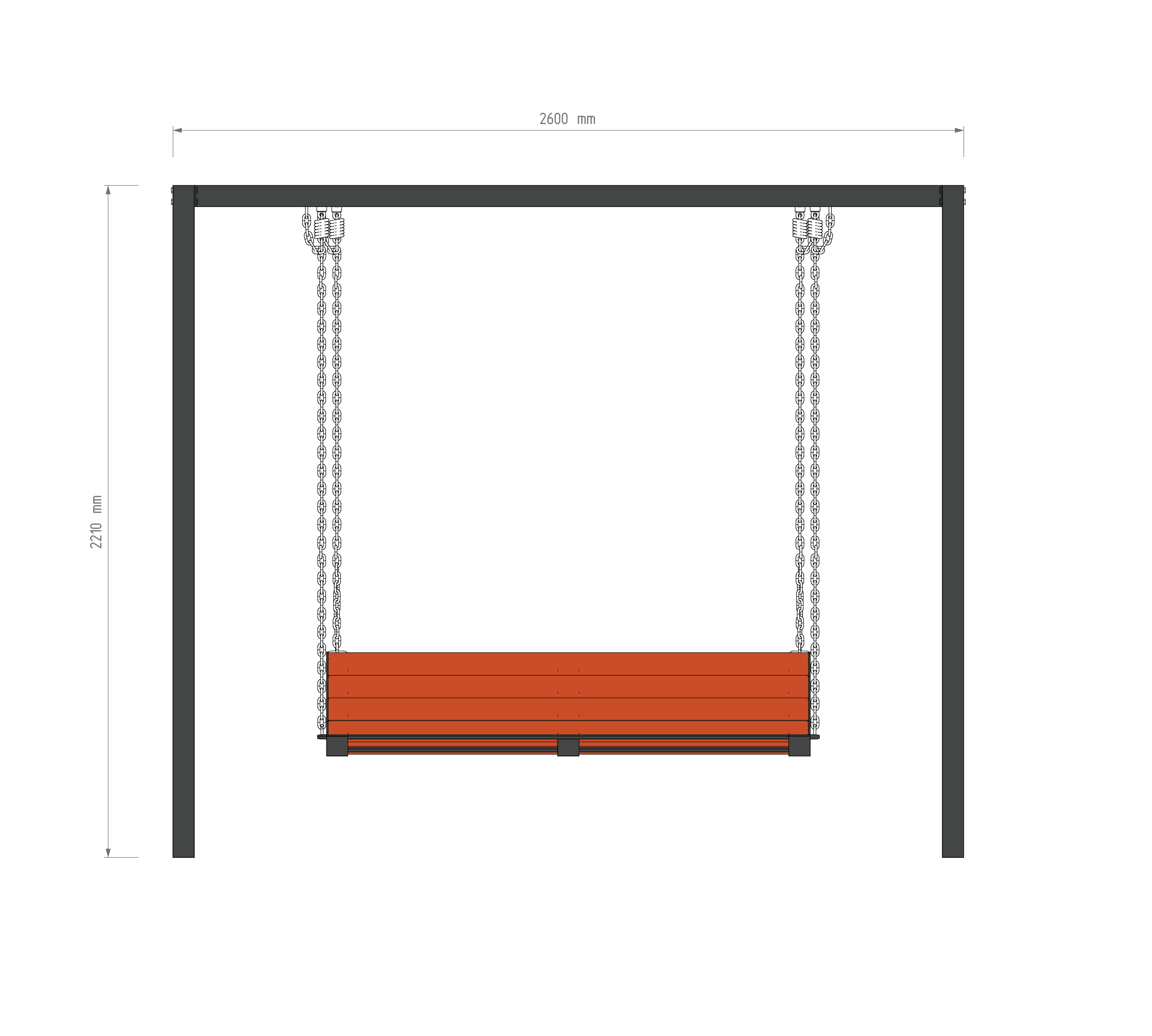

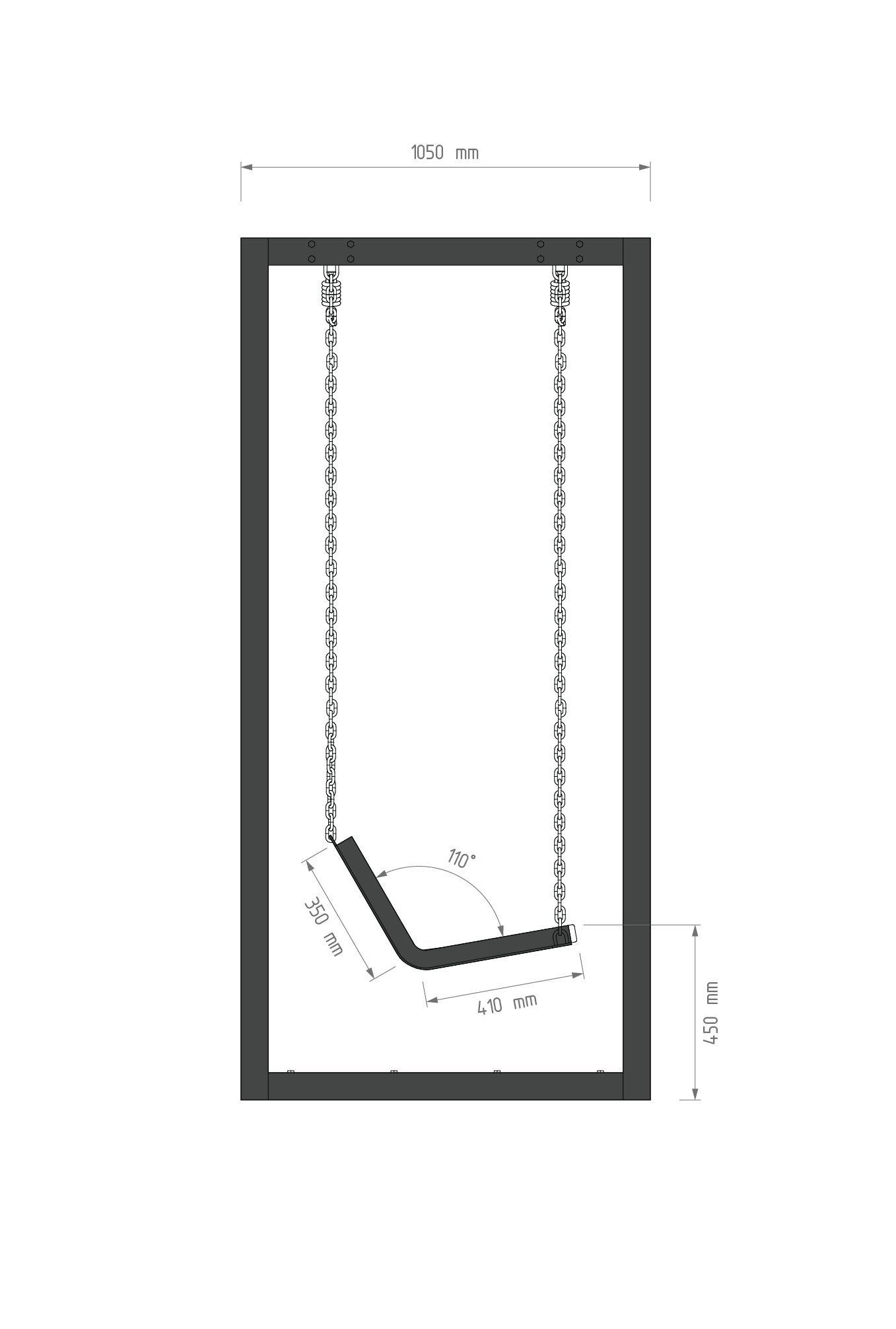

According to the product data sheet, the swing bench dimensions are 1050 mm width, 2600 mm length, and 2210 mm height, and it is designed for use by 3 people / 270 kg total load.

Key Features

• Stationary outdoor swing bench for public spaces
• Galvanized and powder-coated steel frame
• Metal finish: anthracite grey RAL 7016
• Suspended wooden bench with backrest
• Pergola-style upper roof section with wooden covering / lamellas
• Chain suspension with metal connection nodes
• Designed for intensive outdoor use
• Suitable for 3 people
• Approximate total user load: 270 kg
• Fixed installation to prepared base
• Construction nodes can be adapted to the installation site
• Clean modern design for urban and landscaped environments

Technical Specifications

Recommended Use

This product is suitable for:

• Public parks
• Squares and plazas
• Courtyards
• Urban rest areas
• Pedestrian zones
• Residential developments
• Hotel and hospitality outdoor areas
• Commercial landscaped areas
• Municipal public-space projects
• School, cultural, and institutional outdoor zones

Materials and Finish

The main support frame is manufactured from galvanized steel and finished with a durable powder coating in RAL 7016 anthracite grey. The suspended bench is made from dry wooden boards, treated for outdoor exposure. The timber elements are impregnated against biological damage and finished with outdoor oil to improve resistance against UV exposure, moisture, and changing weather conditions.

The pergola-style upper section includes wooden lamellas / covering, visually matching the bench and softening the appearance of the steel structure.

Installation Information

The swing bench is designed for stationary installation. Delivery and on-site assembly are included as part of the product setup, depending on project scope. The fixing method and foundation solution should be selected according to the existing ground surface, such as concrete, paving, or a prepared foundation.

For public outdoor use, the base must provide sufficient stability, durability, and resistance against movement, overturning, and long-term environmental exposure.

Maintenance

To maintain product appearance and durability:

• Clean steel and wooden surfaces regularly.
• Inspect chain fixings and metal connection points periodically.
• Check all fasteners for tightness and mechanical damage.
• Avoid abrasive cleaning tools or aggressive chemicals.
• Refresh wooden elements with outdoor oil as required.
• Inspect the product after winter, storms, or heavy public use.
• Replace damaged timber elements, chains, or fixings when necessary.

Safety Notes

The swing bench should be installed on a stable prepared base and fixed according to the site-specific anchoring solution. Chain suspension, connection nodes, and fasteners should be inspected regularly, especially in public-use locations. The structure should be used within its intended load capacity.
